A PHOTO BACKDROP for DECOYS

PHOTO BACKDROP

A horizonless background for decoys – and other small items

PBD 14

I built my first curved photo backdrop in the early 80s. I still have it – it has served me well – but is showing its age. More important, the way I built it has caused recurring problems as long as I have had it. My goal with this new one is to minimize the maintenance AND have a way to both use and store it that suits my work habits and my shop.

The idea behind such a backdrop is to provide a background that visually isolates the subject and provides few distractions. Photographers have long used cycloramas – or “cycs” – with curved walls to avoid horizons or corners showing in the finished image. So, I used some 1/8-inch Masonite (tempered hardboard, MDF, et cetera) to give me the curve I needed. The mistake I made was to nail through the Masonite into the frame. Although I have tried a variety if ringed nails and the like – and repeatedly patched the nail holes – they would make themselves known after the inevitable handling and moving. The new one uses just glue to hold the Masonite to the frame.

Also, I have tried rolled paper and a variety of fabrics on my old backdrop – but always come back to paint. Dead flat mars very easily – so I am now using satin latex. I have found no objectionable shine and it does wear better than flat. Nevertheless, I assume I will have to roll on a fresh coat of paint once or twice per year. I have also experimented with colors and tones and am now trying a fairly bright, cool grey.

I am excited mostly about the new storage features. With 2 wood cleats on the frame – and 2 corresponding cleats on the big south door of my shop – my backdrop can now be used without additional support and also stores out of the way. I have been propping my old backdrop on saw horses, benches, trash cans and even the tailgate of my Honda Element. Now, I can film in artificial light or natural light with the backdrop mounted on the door – at a very convenient height.

PBD 1-A

PBD 1-B

I began making the frames with some 5/4 Mahogany – but any mostly clear wood will do; certainly 1-inch (actually 3/4-inch thick) is sufficient. The “floor” is a bit longer than the “back wall”. The 1/8-inch Msasonite will take a 16-inch radius bend without breaking. I cut the Masonite 40 inches wide by 48 inches long.

PBD 1

I used 1/2-inch birch plywood for the “knees” that join the floor and back wall frames. I laid out my curved cut by drawing a full-size pattern on paper and then marking it on the plywood. Its best to rough out – cut them oversize – the 2 pieces of plywood with a jig saw and then stack them for the final cuts. I glued them (Titebond II) in 3 spots outside of the cut lines and then sawed them to the final lines on the band saw after the glue set.

I clamped each plywood knee to its 2 frame pieces and fastened them with Titebond and my pneumatic stapler.

The cleats are all beveled on the table saw – approximately 45 degrees – so they will mate and gravity will hold the backdrop to the wall.

PBD 2

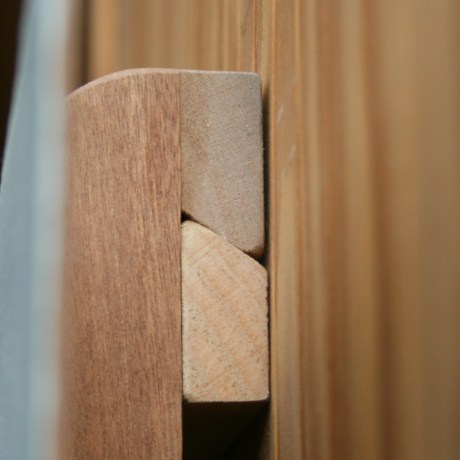

Two 2 frame cleats are screwed-and-glued to the back of the frame – the bottom one with the “mouth” upward and the top one with the “mouth” downward. The 2 wall cleats are screwed to the door with both mouths upward.

PBD 4

PBD 3

The heights at which the cleats are attached to the door are critical – one for use an one for storage.

PBD 5

The backdrop is flipped upside down for storage.

PBD 6

I used Elmer’s version of Gorilla Glue – a polyurethane glue – to fasten the Masonite to the frames. The glue and its water are applied to just the flat parts of the legs and then clamped with blocks and deep-throated clamps. The front stiffener just needs spring clamps. I let the glue cure overnight.

PBD 7

I rounded the 4 corners of the Masonite because damage there is almost a certainty – and then lightly sanded the surface with 100-grit.

PBD 9

I then rolled on one coat of paint – surprised that a second coat was not needed on the raw board.

PBD 8

Photography was a real improvement. At 44 inches above the floor, I could get both true profile shots and also those looking a bit downward. For the artificial light, I have a single LED flood in one of my recessed fixtures. (I am gradually upgrading all of my CFLs to daylight value LEDs.)

PBD 10

Here is a Wigeon under the artificial shop light.

PBD 12

PBD 13

I often photograph my birds in the diffuse natural light of early morning or late afternoon. To do so, I can now just swing the door open – set the cane bolt into the ground – and move my tripod outside.

PBD 15

Note the softer shadow beneath the bird.

PBD 16

PBD 17

When not in use, the backdrop is up and out of the way – and even lets the ceiling light do its job.

PBD 11

I hope this is helpful.

All the best,

SJS
